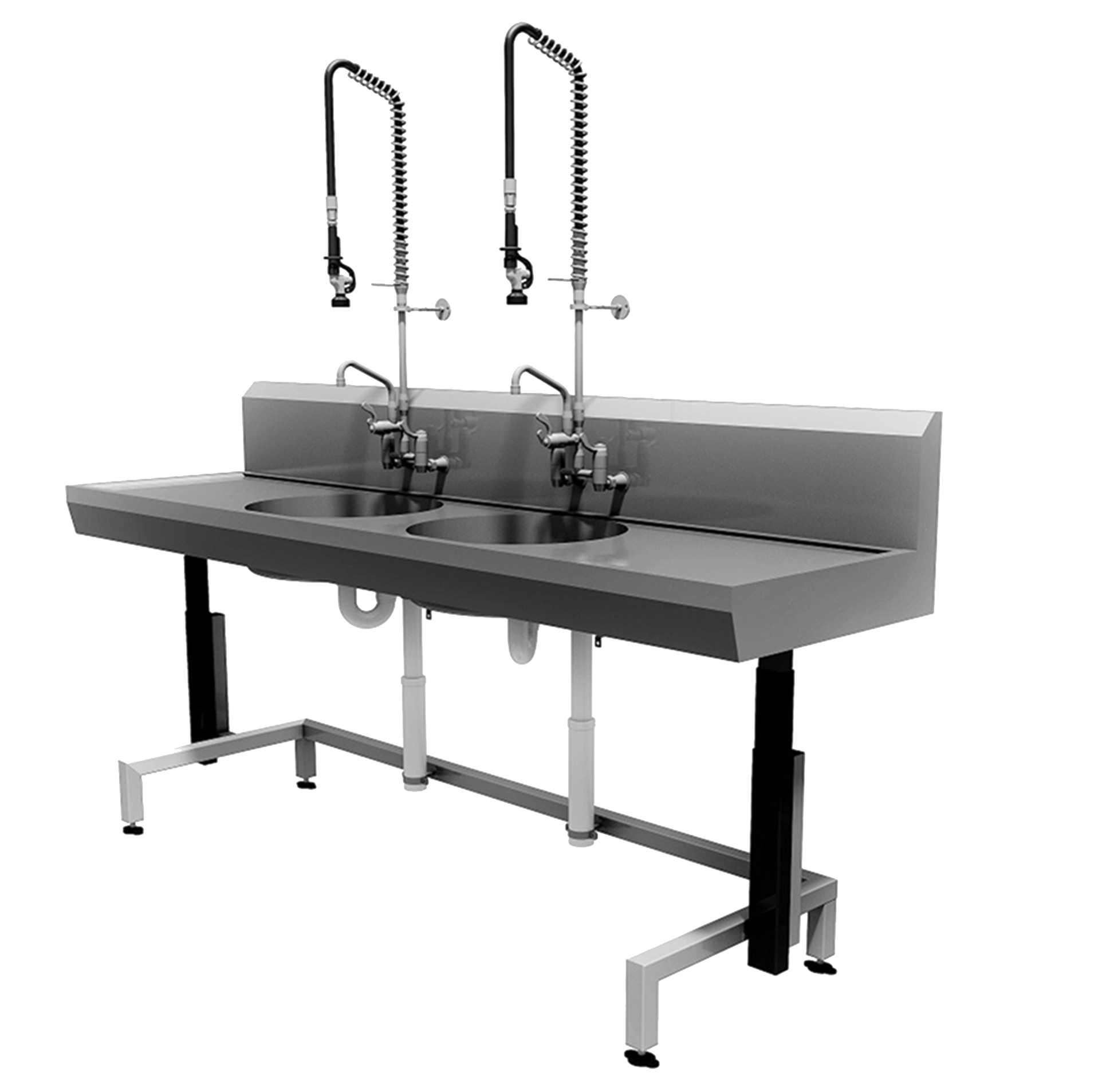

Smartline’s range of height adjustable sinks are all custom made from 304 grade stainless steel. This means there are a few considerations to ensure you collect the right information at quoting stage. Please note Smartline will provide manufacturing drawings to be approved by the customer before production commences, so having this information ready will speed up the ordering process.

Bench Size

Sinks can be custom made to any length between 1350mm to 3600mm. Always select the next size up when quoting to ensure you provide the correct price from your pricelist. For example, a 2100mm long sink would go under the code 11.SS-220 (the 2200mm price).

Bench width can be selected as either 600mm or 700mm

Bowl Size and Location

Sink bowls can be customised with quantity, shape and size. 1, 2 or 3 bowl sinks are available.

For rectangular bowls, the customer can choose what length and width. If unsure, a good standard is around 550mmL x 450mmW. The depth can be chosen from either 175mm or 250mm.

For round / circular bowls, the only option is 550mm diameter and 175mm deep.

Smartline’s range of height adjustable sinks are all made from 304 grade stainless steel.

Bench Size

SmartPack Tables avilable in the following sizes:

1400mm x 800mm

1700mm x 800mm

2000mm x 800mm

Accessories

Accessories are available to increase the utility of the table. Under and above table storage is a great option to increase utility whilst keeping the footprint small. Most accessories are clamped on to the back of the table allowing for more usable space on the bench top whilst keeping overall unit size small.

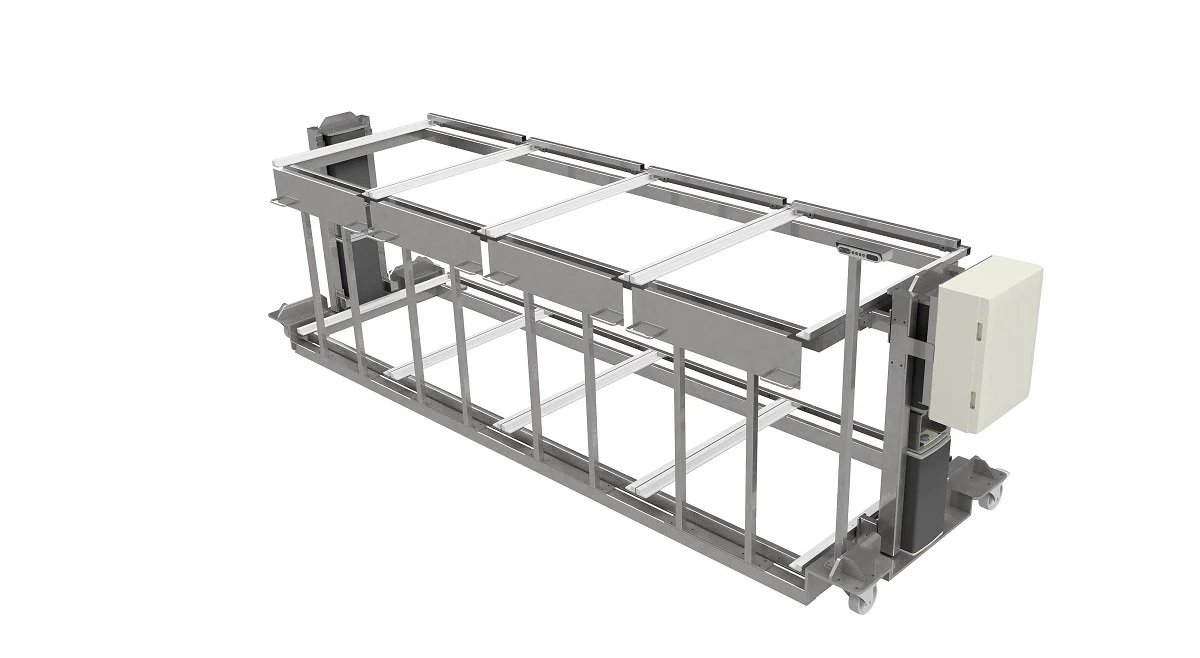

Smartline manufactures washer rack lifters to provide high density storage for batch washer racks. These are available to suit the following brand washers:

• Belimed

• Getinge

• Steelco

• Miele

Avilable in the following sizes:

• 2 Bay (4 rack storage)

• 3 Bay (6 rack storage)

• 4 Bay (8 rack storage)

Please see brochure for further details
